Optimized for small spaces
With its ultra-compact design, the DIRECTSTEAM can be integrated into existing laboratory layouts where space is at a minimum, without requiring major renovations or dedicated mechanical rooms.

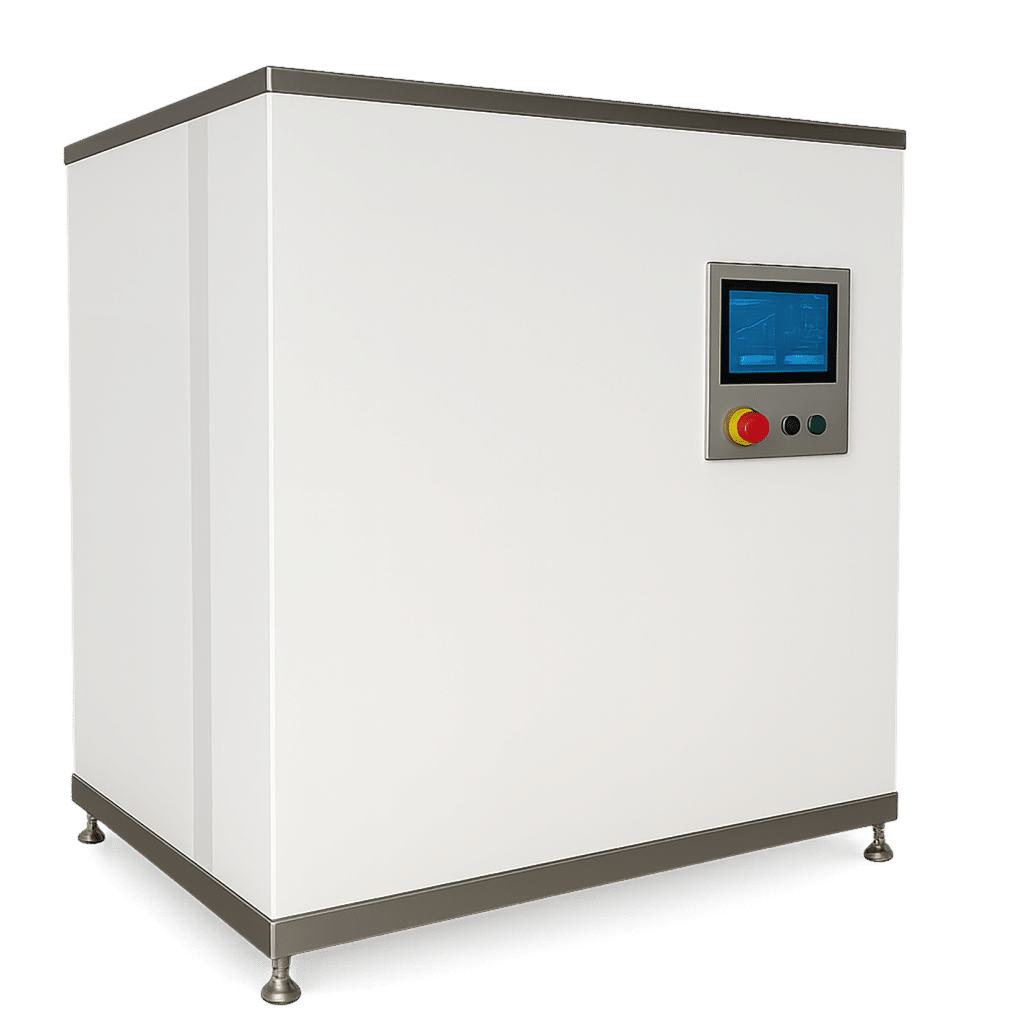

DIRECTSTEAM - Laboratory decontamination unit
The ultra-compact, continuous electric system designed for instant “plug-and-play” decontamination in research and diagnostic labs
The DIRECTSTEAM is the most compact solution in our laboratory range. Unlike batch systems, it utilizes a continuous flow process to provide immediate decontamination. Specifically designed for laboratories with limited space and consistent daily effluent flows, it offers a simplified yet highly secure approach to biosafety.
- Capacity: Up to 260 gal/day (1,000 l/day)
- Technology: Continuous flow (direct heating)
- Energy: Steam 4.5 barg – 24 kW – 30 kg/h
- Effluent BSL: BSL1, BSL2, BSL3
Standardized unit, available in stock, and factory-tested. Its “Plug-and-Play” design ensures it is fully operational immediately upon connection to your utilities.
The compact solution for modern labs
Space is a premium commodity in modern research and diagnostic facilities. Actini engineered the DIRECTSTEAM to provide high-level biosafety within the smallest possible footprint. By moving away from large storage requirements and utilizing an instantaneous heating method, labs can manage their effluents right at the source.
With a daily treatment capacity of 260 gallons, the DIRECTSTEAM perfectly fits BSL2 and BSL3 laboratories, clinical centers, and R&D units that require a reliable, automated, and easy-to-install decontamination solution without the bulk of traditional industrial systems.
Key Highlights
Continuous flow technology
Unlike batch units that wait for a tank to fill, the DIRECTSTEAM processes effluent continuously. This ensures a steady workflow and prevents the accumulation of large volumes of untreated hazardous waste.
Fully automated Supervision
The unit is managed by a dedicated PLC with an intuitive touchscreen interface. It monitors every parameter of the decontamination cycle, ensuring that no liquid leaves the system without being fully treated.
Decontamination cycle
-
Thermal Treatment: * Standard: 275°F (135°C) for 2 minutes
-
Adjustable parameters to meet specific BSL requirements.
-
-
Process: Continuous flow heating via electrical resistance.
-
Automation: Fully automated start/stop based on effluent inflow.
-
Safety: Integrated holding section to ensure every drop of effluent maintains the required temperature for the required time.
Design
-
Unit Type: Patented compact “Plug-and-Play” unit.
-
Components: Integrated buffer tank, high-efficiency electric heater, and PLC control cabinet.
-
Dimensions: Designed to fit through standard doorways and occupy minimal floor area. 54’’ x 104’’ (1,360 x 2,650 mm) – Height : 81’’ (2,070 mm)
-
Drainage: Direct connection to the laboratory drain line after treatment.
-
Safety Features: Leak detection sensors and automated failsafe valves that prevent the discharge of untreated effluent in the event of a power or temperature drop.
Available Options
-
Remote Monitoring: Connect the DIRECTSTEAM to your building management system (BMS) for real-time status updates and remote oversight.
-
Cycle Traceability: Digital recording of all decontamination parameters for audit compliance and quality assurance.
-
Custom Lift Station: If your lab’s drainage is located above the unit, an optional lift pump can be integrated to ensure efficient evacuation.
Why Choose Actini?
For over 70 years, Actini has been the world leader in thermal decontamination. The DIRECTSTEAM represents our commitment to making high-tier biosafety accessible to laboratories of all sizes.
Our systems are ISO 14001 certified and trusted by the world’s leading vaccine manufacturers and research institutes. When you choose Actini, you aren’t just buying a machine; you are investing in a proven process that guarantees the total neutralization of pathogens, protecting your staff and the public.
Our products are designed, manufactured, and sold locally: in the United States for our U.S. customers, and in Canada for our Canadian customers.
Ready to simplify your lab’s decontamination process?
The DIRECTSTEAM is the most efficient and space-saving way to secure your facility.
Contact our technical team today to discuss your project requirements.
